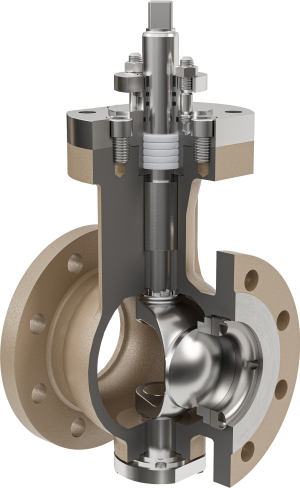

TYPE 82.7-02 ROTARY PLUG VALVE

SHORT DESIGN

For process engineering with high industrial requirements

Wide range of applications

back to overview Rotary Plug Valves →

↓   Sample configurations

↓ Design versions (Design changes)

→ Documentation/Certificates

Technical Data

Version

Face-to-face dimensions
Size
Pressure rating
Type of end connection · Flange
Seat/plug seal
Seat factors
Flow direction
Characteristic
Rangeability
Temperature range
(different designs)
Leakage rate





Compliance
DIN EN 558 R 36
DN 25 to 350
PN 10, 16, 25, 40
DIN EN 1092-1

Metal seal · Soft seal
F1 (100 %) · F0,6 (60 %) · F0,4 (40 %) · F0,25 (25 %)
Flow to close (FTC) · Flow to open (FTO)
Equal percentage or linear using a positioner · inherent
Up to 200:1
–196 to +500 °C

Metal seal:
IV acc. to DIN EN 60534-4 and ANSI/FCI 70-2

Soft seal:
VI acc. to DIN EN 60534-4 and ANSI/FCI 70-2
ISA 75.08.02
NPS 1 to 14
CL 150, 300
ANSI/ASME B16.5

Metal seal · Soft seal
F1 (100 %) · F0,6 (60 %) · F0,4 (40 %) · F0,25 (25 %)
Flow to close (FTC) · Flow to open (FTO)
Equal percentage or linear using a positioner · inherent
Up to 200:1
–321 to +932 °F

Metal seal:
IV acc. to DIN EN 60534-4 and ANSI/FCI 70-2

Soft seal:
VI acc. to DIN EN 60534-4 and ANSI/FCI 70-2

Design Versions

Standard design 82.7

82.7, DN150, TA-Luft

  • Blow-out protection of the shaft by screw (309, 310, 311)
  • Packing(303, 304, 307, 308, 601, 623)
  • Trunnion bearing with 2 screws (400, 402)

Extended version 82.7-01

82.7-01, DN150, TA-Luft

  • Blow-out protection of the shaft using a packing bush (610)
  • Packing (303, 307, 308, 623)
  • Trunnion bearing with 2 screws (400, 402)

New Valve Generation 82.7-02

82.7-02, DN150, TA-Luft

  • Blow-out protection of the shaft using a packing bush (610)
  • Packing (303, 326)
  • Trunnion bearing with 4 screws (400, 402)
